Several Characteristics Affecting the Quality of Diamond Powder

Release time:

2023-06-20

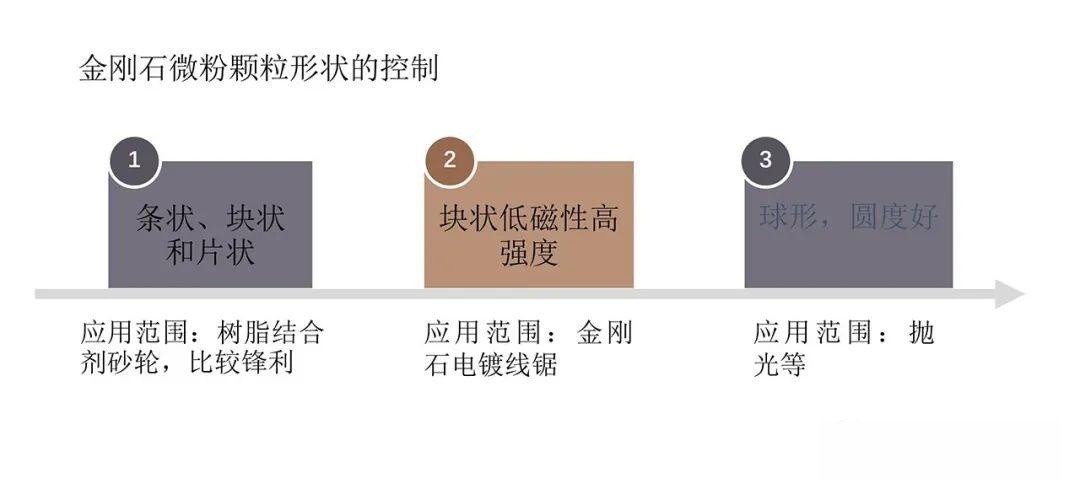

1. Control of diamond powder particle size and large particles 2. Control of the strength of diamond powder 3. Control of particle shape of diamond powder



According to the customer's demand for diamond powder, no scratches, cutting efficiency, durability, roughness, agglomeration and other properties to judge the relationship between application requirements and diamond powder characteristics are as follows:

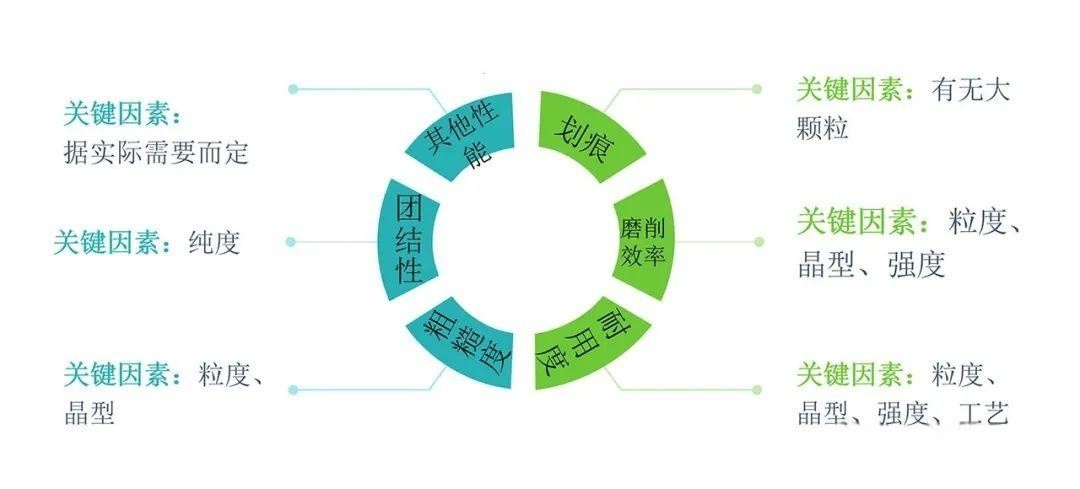

As shown in the above figure, it can be seen that several characteristics affecting the quality of diamond powder are particle size, crystal type, strength and purity.

Control of diamond powder particle size and large particles

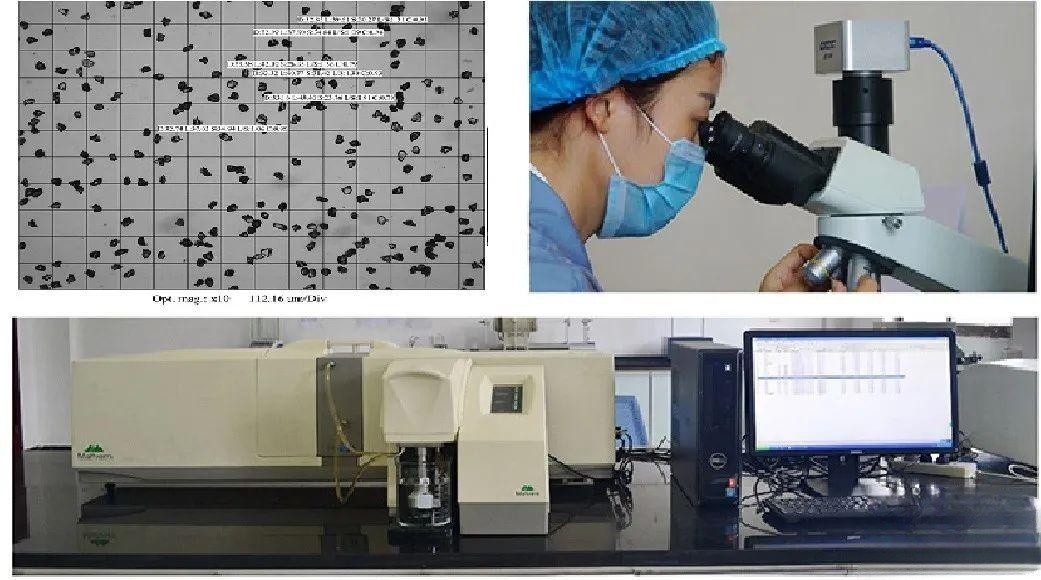

In order to overcome the shortcomings of inaccurate measurement of irregular shapes and long-strip particles, image and biological microscopy are used in production practice, mainly to check large particles and long-strip particles. The double detection method of laser particle size analyzer and microscope inspection is used to control the particle size distribution and large particles of diamond powder.

Strength Control of Diamond Powder

High strength micro-powder wear resistance and cutting force are better, mainly from the control of raw materials, raw material strength by the T1 TT1 value of strength impact tester to judge.
